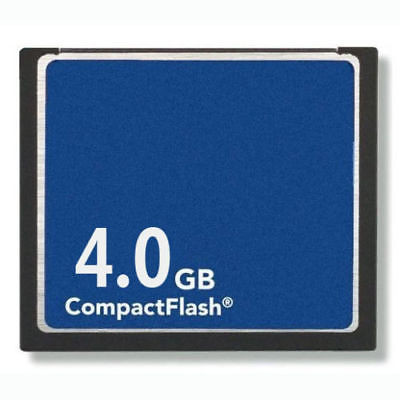

4GB Industrial CompactFlash CF Memory Card SLC Flash Innodisk Control chip

Features iSMART disk health monitoring Intelligent error recovery system Excellent data transfer speed Write protection security Enhanced power cycling management High-mobility, and easy plug-in and plug-out Supports advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing Compatible with CF Specifications version 6.0, PC Card standard, IDE standard interface, and ATA standard Interface PATA Type Standard Flash Type SLC Connector 50pin CF connector Capacity 1GB~64GB Max. Channels 4 Sequential R/W (MB/sec, max.) 110 / 100 Max. Power Consumption 0.76W(3.3V x 230mA) H/W Write Protect Optional ATA Security Y S.M.A.R.T. Y Dimension (WxLxH/mm) 42.8 x 36.4 x 3.3 Vibration 20G@7~2000Hz Shock 1500G@0.5ms MTBF >3 million hours Storage Temperature -55°C ~ +95°C Operation Temperature Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C
  • Features iSMART disk health monitoring Intelligent error recovery system Excellent data transfer speed Write protection security Enhanced power cycling management High-mobility, and easy plug-in and plug-out Supports advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing Compatible with CF Specifications version 6.0, PC Card standard, IDE standard interface, and ATA standard Interface PATA Type Standard Flash Type SLC Connector 50pin CF connector Capacity 1GB~64GB Max. Channels 4 Sequential R/W (MB/sec, max.) 110 / 100 Max. Power Consumption 0.76W(3.3V x 230mA) H/W Write Protect Optional ATA Security Y S.M.A.R.T. Y Dimension (WxLxH/mm) 42.8 x 36.4 x 3.3 Vibration 20G@7~2000Hz Shock 1500G@0.5ms MTBF >3 million hours Storage Temperature -55°C ~ +95°C Operation Temperature Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C
  • Features iSMART disk health monitoring Intelligent error recovery system Excellent data transfer speed Write protection security Enhanced power cycling management High-mobility, and easy plug-in and plug-out Supports advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing Compatible with CF Specifications version 6.0, PC Card standard, IDE standard interface, and ATA standard Interface PATA Type Standard Flash Type SLC Connector 50pin CF connector Capacity 1GB~64GB Max. Channels 4 Sequential R/W (MB/sec, max.) 110 / 100 Max. Power Consumption 0.76W(3.3V x 230mA) H/W Write Protect Optional ATA Security Y S.M.A.R.T. Y Dimension (WxLxH/mm) 42.8 x 36.4 x 3.3 Vibration 20G@7~2000Hz Shock 1500G@0.5ms MTBF >3 million hours Storage Temperature -55°C ~ +95°C Operation Temperature Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C
  • Features iSMART disk health monitoring Intelligent error recovery system Excellent data transfer speed Write protection security Enhanced power cycling management High-mobility, and easy plug-in and plug-out Supports advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing Compatible with CF Specifications version 6.0, PC Card standard, IDE standard interface, and ATA standard Interface PATA Type Standard Flash Type SLC Connector 50pin CF connector Capacity 1GB~64GB Max. Channels 4 Sequential R/W (MB/sec, max.) 110 / 100 Max. Power Consumption 0.76W(3.3V x 230mA) H/W Write Protect Optional ATA Security Y S.M.A.R.T. Y Dimension (WxLxH/mm) 42.8 x 36.4 x 3.3 Vibration 20G@7~2000Hz Shock 1500G@0.5ms MTBF >3 million hours Storage Temperature -55°C ~ +95°C Operation Temperature Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C
  • Features iSMART disk health monitoring Intelligent error recovery system Excellent data transfer speed Write protection security Enhanced power cycling management High-mobility, and easy plug-in and plug-out Supports advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing Compatible with CF Specifications version 6.0, PC Card standard, IDE standard interface, and ATA standard Interface PATA Type Standard Flash Type SLC Connector 50pin CF connector Capacity 1GB~64GB Max. Channels 4 Sequential R/W (MB/sec, max.) 110 / 100 Max. Power Consumption 0.76W(3.3V x 230mA) H/W Write Protect Optional ATA Security Y S.M.A.R.T. Y Dimension (WxLxH/mm) 42.8 x 36.4 x 3.3 Vibration 20G@7~2000Hz Shock 1500G@0.5ms MTBF >3 million hours Storage Temperature -55°C ~ +95°C Operation Temperature Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C
SKU:
CF4G
Brand:
Innodisk
Weight:
0.00 LBS
Shipping:
Free Shipping
$11.00
Quantity:

Add To Wish List

Friendly Customer Service Satisfaction Guaranteed

Friendly Customer Service
Satisfaction Guaranteed

Speedy Checkout Easy and Hassle Free

Speedy Checkout
Easy and Hassle Free

Same Day Processing Ships Within 24hrs

Same Day Processing
Ships Within 24hrs

Free U.S. Shipping On Orders Over $25

Free U.S. Shipping on ALL Products

Quick Delivery Instant Tracking Updates

Quick Delivery
Instant Tracking Updates

100% Safe Shopping Secure Checkout

100% Safe Shopping
Secure Checkout

Product Description

Features

iSMART disk health monitoring

Intelligent error recovery system

Excellent data transfer speed

Write protection security

Enhanced power cycling management

High-mobility, and easy plug-in and plug-out

Supports advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing

Compatible with CF Specifications version 6.0, PC Card standard, IDE standard interface, and ATA standard

Interface

PATA

TypeStandard

Flash TypeSLC

Connector50pin CF connector

Capacity1GB~64GB

Max. Channels4

Sequential R/W (MB/sec, max.)110 / 100

Max. Power Consumption0.76W(3.3V x 230mA)

H/W Write ProtectOptional

ATA SecurityY

S.M.A.R.T.Y

Dimension (WxLxH/mm)42.8 x 36.4 x 3.3

Vibration20G@7~2000Hz

Shock1500G@0.5ms

MTBF>3 million hours

Storage Temperature-55°C ~ +95°C

Operation TemperatureStandard Grade: 0°C ~ +70°C;

Industrial Grade: -40°C ~ +85°C

Add To Wish List

Click the button below to add the 4GB Industrial CompactFlash CF Memory Card SLC Flash Innodisk Control chip to your wish list.

You Recently Viewed...

Other Details

capacity:
4GB
Format:
CompactFlash
Bundled Items:
Memory Card Case
